Specifications
Effects of Digital Audio Signal Processing: 24-bit depth, 44.1kHz sample rate
Frequency Response: 20Hz – 20kHz ± 1dB
Dynamic Range: Max. 127 dB (digital to analog) Effects: 460+ (incl. global EQ)
Effects: 460+ (incl. global EQ)
No. of Effect Modules: 17 Effects
Slots: Total of 12 simultaneous effects slots
Patches: 300
Looper Time: Stereo 60 seconds

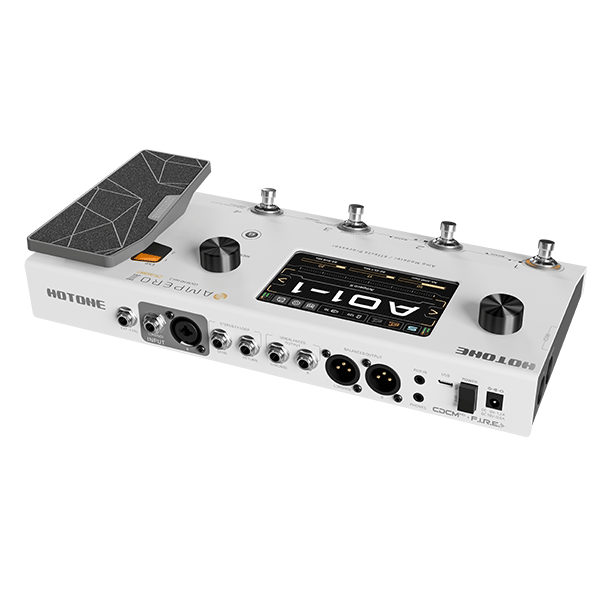

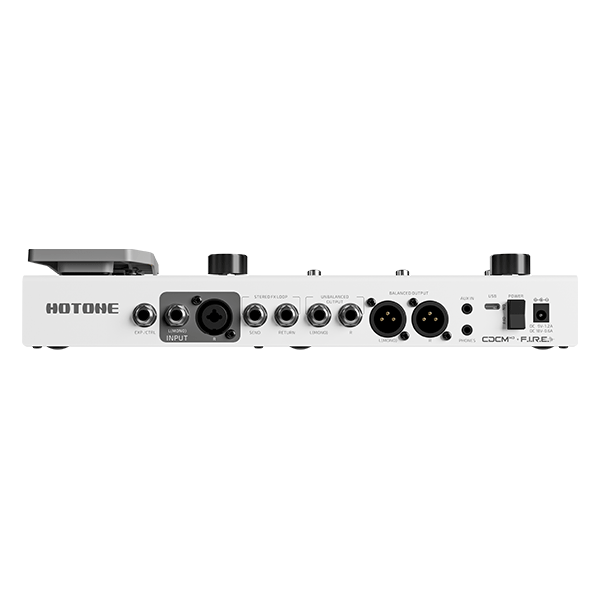

Inputs:
One 1/4″ Tip Sleeve (TS) instrument jack with 3 input mode selector
One XLR or 1/4″ (TS) combo jack with 5 input mode selector and mic preamp (max. gain of 52dB)
One 1/8″ Stereo Auxiliary In (Aux In) jack
Two 1/4″ Tip Ring Sleeve (TRS) expression pedal/momentary footswitch input (EXP/CTRL) jacks
One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop return jack

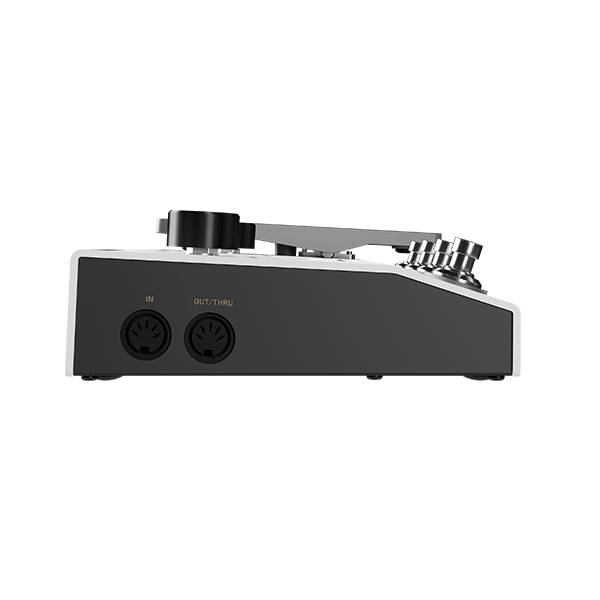

One Standard 5 pin MIDI input jack
Outputs：
Two 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo output jacks
Two XLR balanced stereo output jacks, with ground lift switch
One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop send jack
One 1/8″ stereo headphones output jack
One Standard 5 pin MIDI output jack
Input Impedance:
1/4″ Tip Sleeve (TS) Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ
XLR Input: 5kΩ
FX Loop Return: 100kΩ
Aux In: 10kΩ
Output Impedance:
Unbalanced Output: 1kΩ
Balanced Output: 1kΩ
FX Loop Send: 1kΩ
Headphones: 47Ω

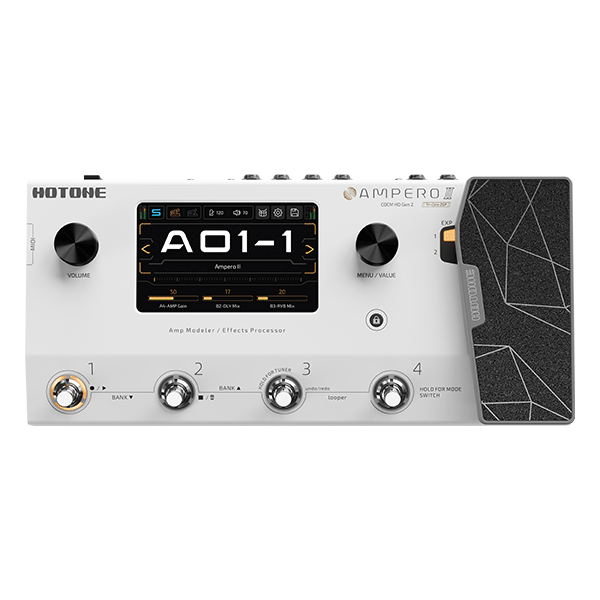

Screen: 5″ 800 x 480 Color Dynamic Display Touch Screen
USB Port: USB 2.0 Type-C port; Supports USB Audio 2.0; Supports 44.1 to 192kHz sample rate switching
IR Impulse Response/IR processing: Supports 24-bit/44.1kHz Mono WAV files, 1024 and 2048 points; Supports up to 50 user IRs
Power Requirements: 9-18V DC Center Negative
Current Consumption: 1.2A Max (9V DC)
Dimensions: 330mm(W) x 157mm(D) x 61mm(H)
Weight: 1695g
