Specifications
Effects Digital Audio Signal Processing : 24-bit depth, 44.1kHz sample rate
Frequency Response : 20Hz – 20kHz ± 1dB
Dynamic Range : Max. 127 dB (digital to analog)
Effects : 460+ (incl. global EQ)
No. of Effect Modules : 16
Effects Slots : Total of 12 simultaneous effects slots
Patches : 300
Looper Time : Stereo 60 seconds
Bluetooth® : 4.2 Dual-Mode (BLE & audio) with Bluetooth® MIDI support

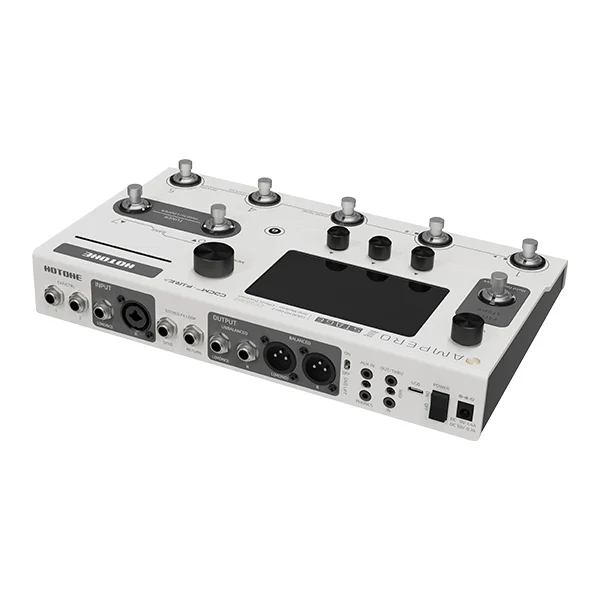

Inputs :
One 1/4″ Tip Sleeve (TS) instrument jack with 3 input mode selector
One XLR or 1/4″ (TS) combo jack with 5 input mode selector and mic preamp (max. gain of 52dB)
One 1/8″ Stereo Auxiliary In (Aux In) jack
Two 1/4″ Tip Ring Sleeve (TRS) expression pedal/momentary footswitch input (EXP/CTRL) jacks
One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop return jack
One 1/8″ Tip Ring Sleeve (TRS) MIDI input jack
Outputs :
Two 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo output jacks
Two XLR balanced stereo output jacks, with ground lift switch
One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop send jack
One 1/8″ stereo headphones output jack
One 1/8″ Tip Ring Sleeve (TRS) MIDI output jack
Input Impedance : 1/4″ Tip Sleeve (TS) Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ , XLR Input: 5kΩ ,FX Loop Return: 100kΩ ,Aux In: 10kΩ
Output Impedance : Unbalanced Output: 1kΩ Balanced Output: 1kΩ FX Loop Send: 1kΩ Headphones: 47Ω
Screen: 5″ 800 x 480 Color Dynamic Display Touch Screen
USB Port : USB 2.0 Type-C port; Supports USB Audio 2.0; Supports 44.1 to 192kHz sample rate switching
IR Impulse Response/IR processing : Supports 24-bit/44.1kHz Mono WAV files, 1024 and 2048 points; Supports up to 50 user IRs
Power Requirements : 9-18V DC Center Negative
Current Consumption : 1.4A Max (9V DC)
Dimensions : 301mm(W) x 180mm(D) x 58mm(H)
Weight : 1895g
