Specifications
Pot Resistance (EXP out)
10kΩ
Input Impedance
1MΩ
Output Impedance
100Ω
Wah Range Selector
WARM—290Hz to 1.4kHz
CLASSIC—360Hz to 1.8kHz
Current Consumption
Max 30mA
Dimensions
81mm (W) x 162mm (D) x 51mm (H)
Weight
500g
৳ 15,000.00

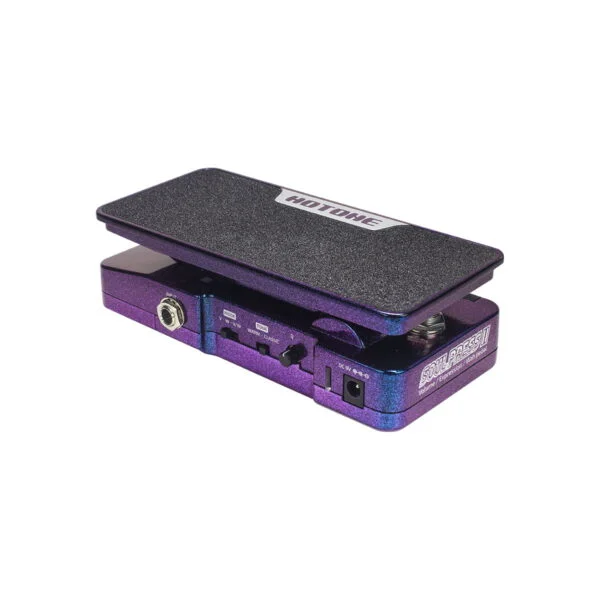

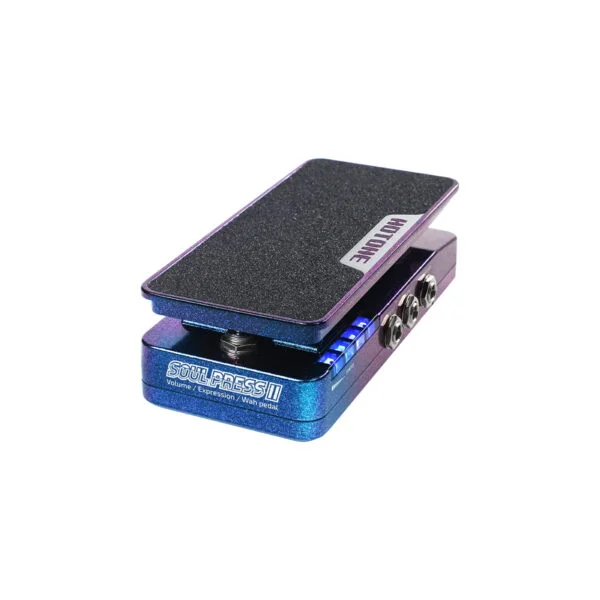

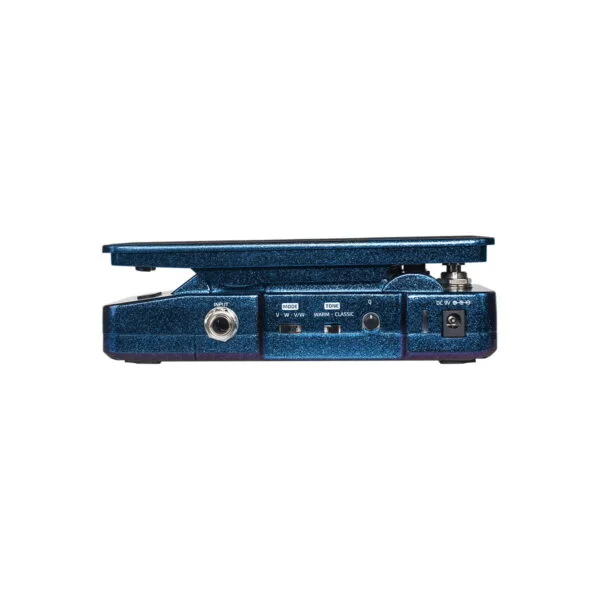

✪ True Bypass
✪ Increased footprint for a better user experience

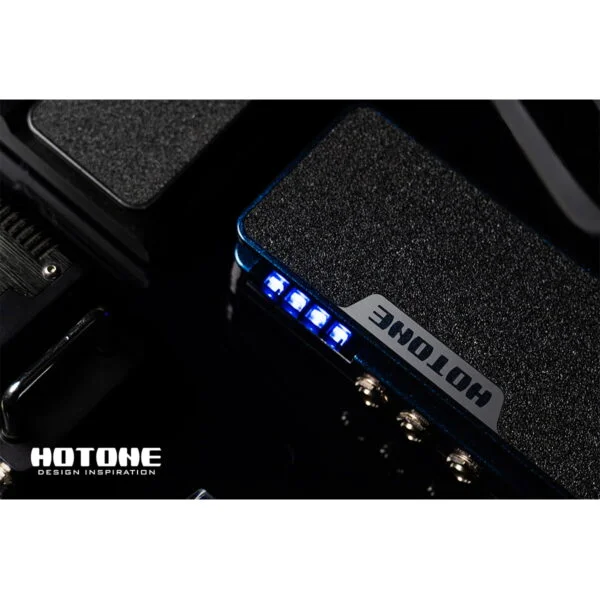

✪ Cool STATUS LEDs with mode switch indicate pedal position in real time
✪ 4 in 1 functionality (volume, expression, wah, volume/wah)
✪ Inspired by the legendary vocal-like wah sound
✪ Q (wah filter range) and WARM/CLASSIC (frequency range) controls for a more flexible wah tone
✪ Active volume design for keeping lossless tone
✪ Separate tuner and expression outputs for more connection possibilities
✪ 9V DC or 9V battery power supply
Pot Resistance (EXP out)
10kΩ
Input Impedance
1MΩ
Output Impedance
100Ω
Wah Range Selector
WARM—290Hz to 1.4kHz
CLASSIC—360Hz to 1.8kHz
Current Consumption
Max 30mA
Dimensions
81mm (W) x 162mm (D) x 51mm (H)
Weight
500g
