SPECIFICATIONS
A/D/A Converter: 24-bit high performance audio
Sampling Frequency: 44.1 kHz
SNR: 110dB
Maximum Simultaneous Effects: 9
Preset Memory: 99 User Presets/99 Factory Presets
Looper: 90 seconds of record time
Drum Machine: 99 Patterns

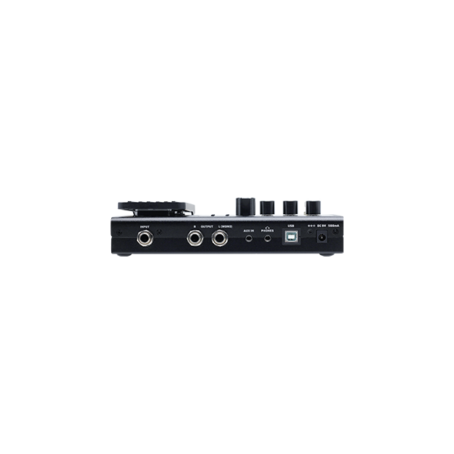

Analog Input Connections
Guitar Input: 1/4″ Unbalanced (TS)
Input Impedance: 1M Ohms
Aux Input: 1/8″ Stereo (TRS)
Aux Input Impedance: 10k Ohms
Analog Output Connections
Left/Right Outputs: 1/4″ Unbalanced (TS)
Left/Right Output Impedance: 1k Ohms
Headphone Output: 1/8″ Stereo (TRS)
Headphone Output Impedance: 47 Ohms
Digital Connections
USB Port: USB 2.0 Type-B
USB Recording Specification
Sample Rate: 44.1 kHz
Bit Depth: Supports 16-bit or 24-bit
Dimensions: 198mm(W) x 134mm(D) x 28mm(H)
Unit Weight: 800g
Power
Power Requirements: DC 9V, 500mA
