Specifications
A/D/A Converter: 24-bit high performance audio
Sampling Frequency: 44.1 kHz
SNR: 110dB
Module: 11, can be used simultaneously
Patch Memory: 256 Patch slots, 100 Factory Patches
Looper: 180 seconds of record time
Drum Machine: 100 Patterns
MIDI (IN/OUT/THRU): 5-pin MIDI connectors

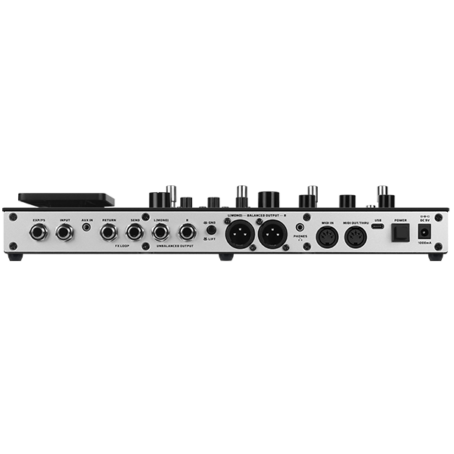

Analog Input Connections
Guitar Input: 1/4″ Unbalanced (TS)
Input Impedance: 4.7M Ohms (A.GT), 1M Ohms (E.GT), 10k Ohms (Line)
Return Input: 1/4″ Unbalanced (TS)
Return Input Impedance: 100k Ohms
Aux Input: 1/8″ Stereo (TRS)
Aux Input Impedance: 10k Ohms
Analog Output Connections
L/R Unbalanced Outputs: 1/4″ TS jacks
L/R Unbalanced Output Impedance: 1k Ohms
L/R Balanced Outputs: XLR jacks
L/R Output Impedance: 1k Ohms
Send Output: 1/4″ Unbalanced (TS)
Send Output Impedance: 1k Ohms
Headphone Output: 1/8″ Stereo (TRS)
Headphone Output Impedance: 22 Ohms
Digital Connections
USB Port: USB 2.0 Type-C Port
USB Recording Specification
Sample Rate: 44.1 kHz Bit
Depth: Supports 16-bit or 24-bit
Size and weight
Dimensions: 345mm(W) x 220mm(D) x 62.5mm(H)
Unit weight: 2.37 kg
Power
Power Requirements: DC 9V, 1000mA, center negative
