Digital Audio Signal Processing
24-bit depth, 44.1kHz sample rate
SNR
120dB
Effects
242
Effects Modules
Total of 9 simultaneous
Patches
198 (99 user patches, 99 factory patches)
Looper Time
Mono 100 seconds, Stereo 50 seconds
Internal Drum Machine
100 Rhythm Patterns

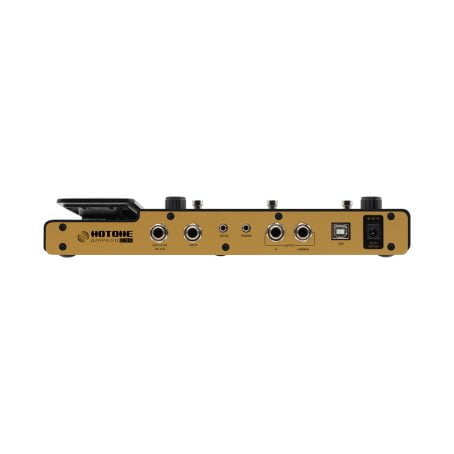

Inputs
One 1/4” Tip Sleeve (TS) Instrument jack
One 1/8” Stereo Auxiliary In (Aux In) jack
One 1/4” Tip Ring Sleeve (TRS) Expression Pedal input jack
Outputs
Two 1/4” Tip Sleeve (TS) Unbalanced Stereo output jacks
One 1/8” Stereo headphones output jack
Input Impedance
Input: 4.7MΩ
Aux In: 10kΩ
Output Impedance
Output: 3.2kΩ
Phones: 66Ω
Screen
4″800 x 480 Color Dynamic Display Touch Screen
USB Port
USB Type-B port with USB Audio support
Impulse Response/IR processing
Supports 24-bit/44.1kHz Mono WAV files, 1024 points
Power Requirements
9V DC Center Negative
Current Consumption
500mA Max
Dimensions
273mm (W) x 143mm (D) x 51mm (H)
Weight
1202g
