Specifications

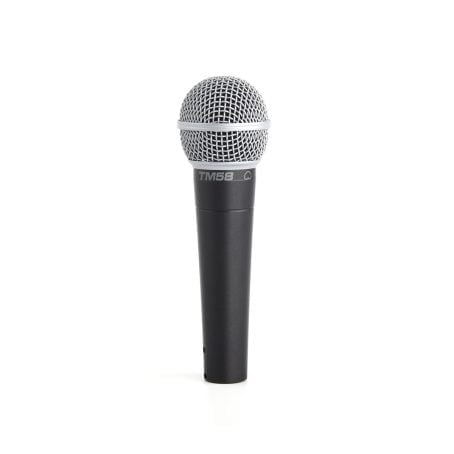

Type：Dynamic microphone
Polar pattern：Unidirectional (Cardioid), rotationally symmetrical about microphone axis, uniform with frequency. (Figure 1)
Frequency response：50 to 18,000 Hz (Figure 2)
Sensitivity(at 1,000 Hz Open Circuit Voltage)：-53±2 dB , 1Pa=94dB SPL
Rated impedance：500Ω
Max. SPL (1 kΩ load)：155 dB SPL (THD!ظ1% 1kHz)
Connector：Integral 3 pin male XLR type
Finish：Metal structure, grey, namel -painted , matte finished
Environmental conditions：The TM58 Series operates between -10 to +50 (14 to 122 ) with relative humidity between 0 to 95%.
Dimensions：Φ51.0mm x 163.0mm (2.00 in. x 6.41in.) (Figure 3)
Net weight：320 g
RoHS：The TM58 Series including the product and packages follow the instruction of EU 2002/95/EC and comply to RoHS
